JC261P 2CH Cloud Connected Dash Cam
The JC261P 2CH combines a forward facing camera with an in-cab view and an integrated 4G tracker, ideal for cars, vans and HGVs where both driving footage and driver monitoring matter. It suits fleet operators who need live video and live tracking from a single connected device. Installation, a 256GB memory card and the FleetDVS app are included.
£329.00 ex. VAT
- Thatcham-approved security products
- TASSA-accredited mobile installation
- Nationwide fitting at home, work or depot
- 24/7 UK control-room monitoring options
Product Overview
The most up to date image sensor
The state-of-the-art JC261P 2 CH camera uses the most up to date image sensor covering a range of lighting conditions. The footage can be viewed remotely anywhere in the world via iPhone or Android mobile device connected to 4G network, or in vehicle via Wi Fi or remove the Micro SD Card and view on a PC or MAC. The JC261P 2 CH is the very latest in terms of 4G cloud connected Dash Cam technology as a fully integrated camera and tracker providing comprehensive video telematics information.

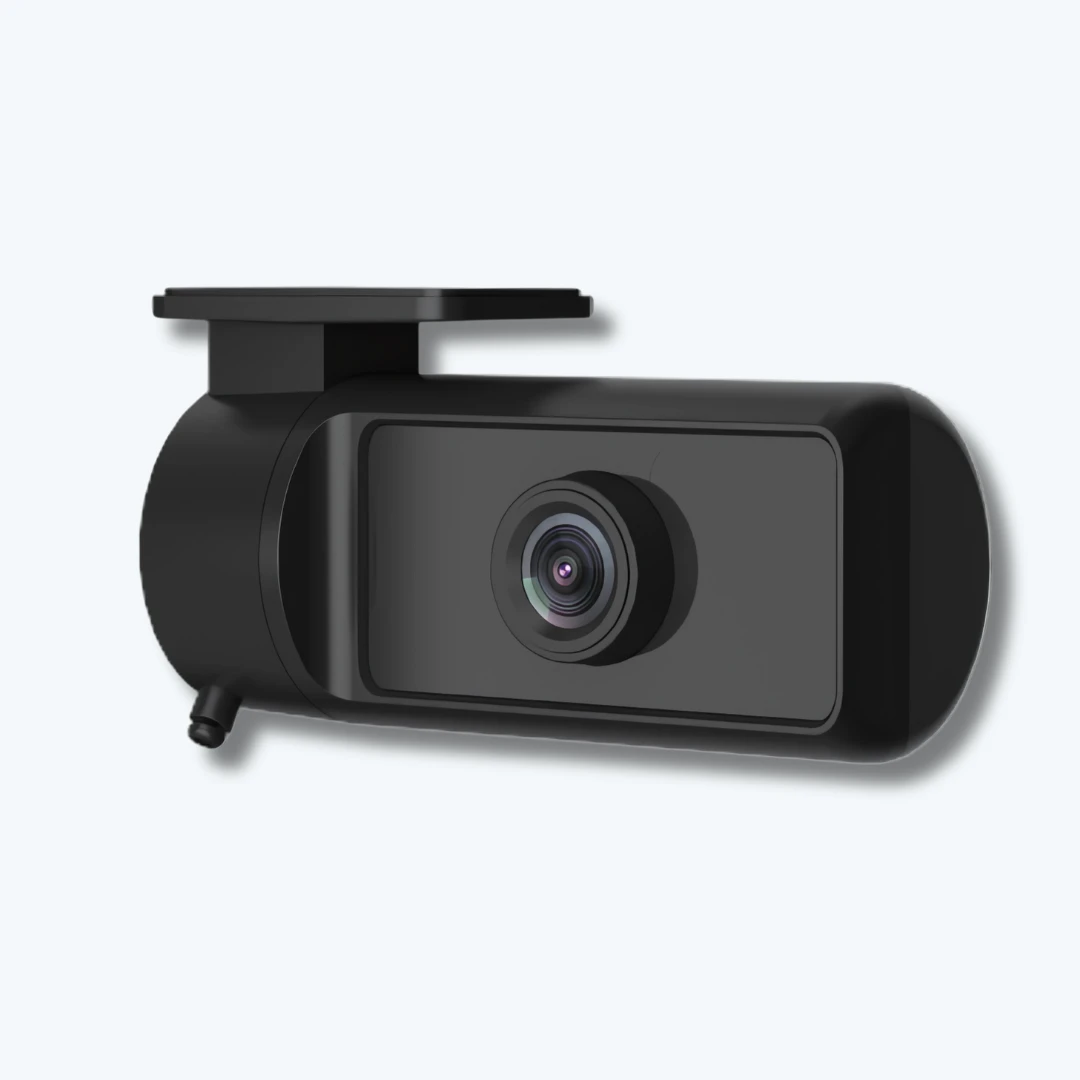

Front Facing & In-Cab Camera
The JC261P 2CH has cameras mounted on the front looking out of the vehicle and an integrated inward cabin facing one, and captures the entire road ahead. It can provide irrefutable proof in the unfortunate event of an accident and can provide protection of your valuable property whilst parked and provide a record of scenic drives. For Fleet and Transport Managers it provides invaluable information such as driving behaviour analysis and active tracking information from one integrated software platform.
GPS, Wi-Fi and 4G
The Camera comes with integrated GPS, which enables location of your vehicle on the map during video playback and overlay speed on videos which can be hidden within settings if required. The Wi-Fi enables you connect your camera with a smartphone or tablet. Wi-Fi lets you check live view, and playback videos through the built-in Wi-Fi in conjunction with the FleetDVS App. The FleetDVS also allows remote connection and access to both Live Video and Tracking information as well as Driver Behaviour monitoring
Operation whilst parked
When the G Sensor detects vibration, the camera will record for 25 seconds capturing important video information. To ensure that the battery is not totally drained there is a cut off voltage below which the camera is turned off.

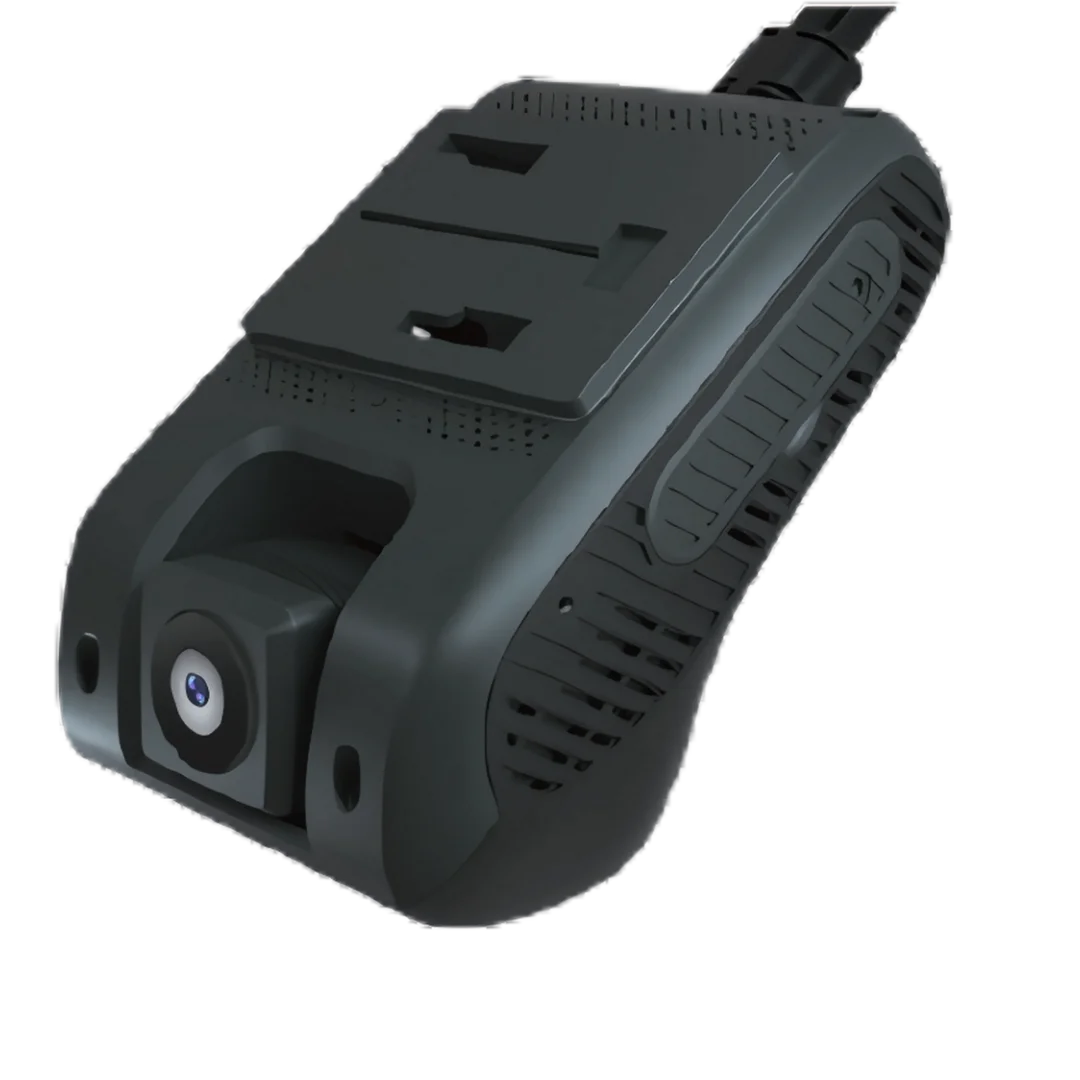

Tamper Proof Protection
The camera comes with the cable attached to the camera preventing removal of power to the camera unless the cable is cut. The Micro SD Card slot and SIM card slot are protected from removal by using a cover plate. There is the option to purchase a Tamper Proof Lock which fits in place of the cover.
Micro SD Card Storage and Formatting
The JC261P 2CH will support Micro SD Cards up to 256GB. When an Emergency Mode Recording is generated as a result of impact detection, it is overwrite protected. On the JC261P 20% of the card is allocated for Emergency Mode Recordings.

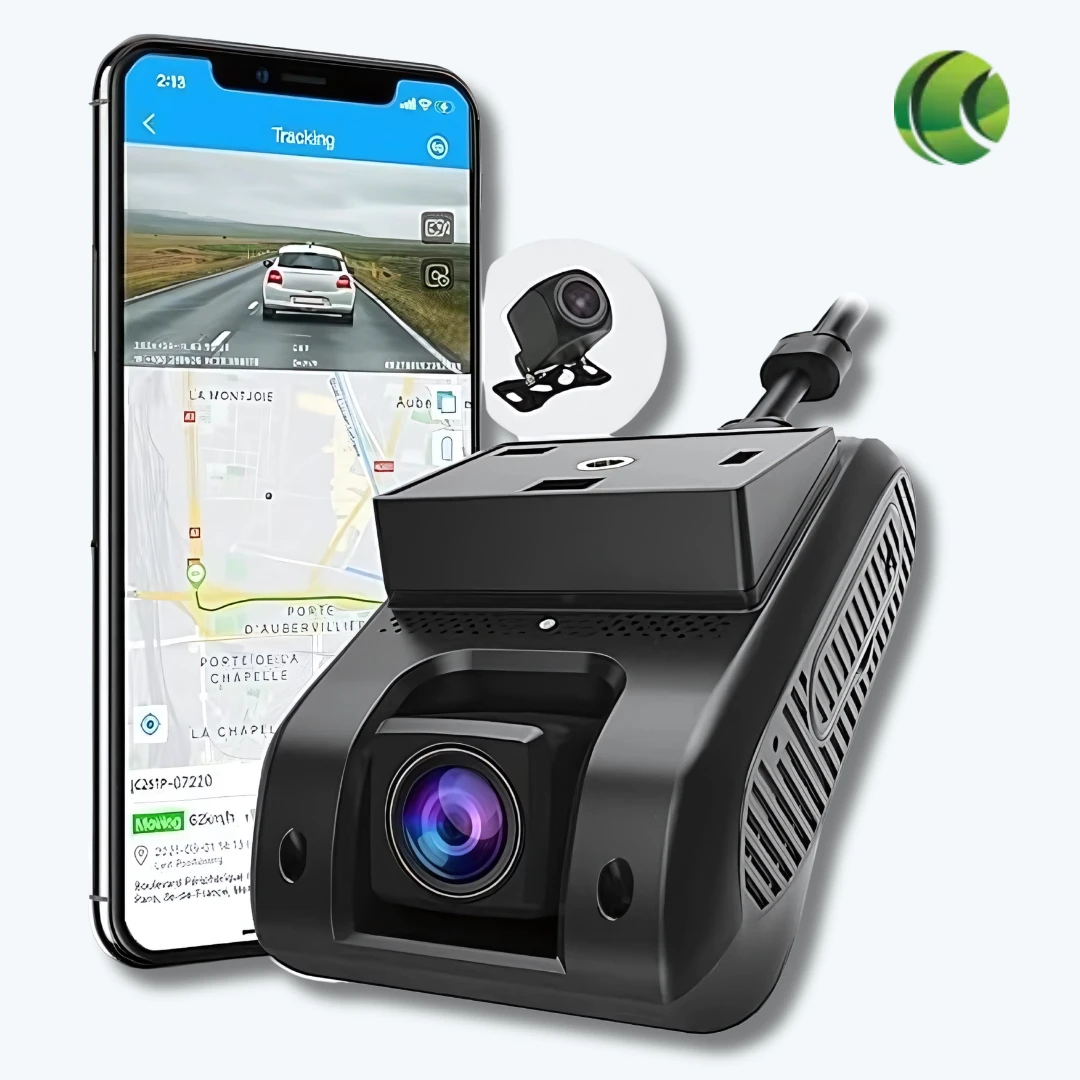

Viewer (PC or MAC) and APP (iOS or Android)
Watch front and rear side of recorded videos, check speed and location, trace route of vehicles on Google Maps on a Windows based PC or MAC.The FleetDVS App for Android, and iOS allows users to play live or recorded JC261P videos via a smartphone or tablet PC via Wi-Fi connection.The Wi-Fi connection also enables you to access and transfer videos easily to your smartphone or tablet device without having to remove the micro-SD card.When you remove the SD Card and plug it into the PC or an Apple Mac you can simply analyse how the accident or incident occurred with the FleetDVS software player. This software will allow you to review the event, collecting vital information about your speed and location. A built in Google Map will show you the journey on the road whilst in playback and will allow you to find your exact location.
Ideal Applications
Fleet Management
Perfect for fleet managers looking to monitor driver behaviour, track vehicle location in real-time, and manage a fleet efficiently.
Commercial Vehicles
Ideal for delivery vans, service vehicles, and transportation businesses where real-time tracking, video surveillance, and driver monitoring are crucial for operational efficiency and safety.
Personal Vehicles
Great for personal vehicle owners seeking enhanced security and driver safety monitoring, providing peace of mind while driving.
Security & Surveillance Vehicles
Suitable for security vehicles, providing real-time video streaming and tracking for surveillance operations.
Accident Documentation
Helps capture video footage of any accidents or incidents, providing clear evidence that can be used in insurance claims or legal situations.
Real-Time Data Access Subscription Option
The data contained on the Micro SD Card is accessible in Real-Time via the FleetDVS Software Platform over 4G. The annual subscription cost for 1GB of data per month per vehicle £120 Ex VAT per year. The data can be aggregated across your whole fleet.
The most up to date image sensor
The state-of-the-art JC261P 2 CH camera uses the most up to date image sensor covering a range of lighting conditions. The footage can be viewed remotely anywhere in the world via iPhone or Android mobile device connected to 4G network, or in vehicle via Wi Fi or remove the Micro SD Card and view on a PC or MAC. The JC261P 2 CH is the very latest in terms of 4G cloud connected Dash Cam technology as a fully integrated camera and tracker providing comprehensive video telematics information.
Front Facing & In-Cab Camera
The JC261P 2CH has cameras mounted on the front looking out of the vehicle and an integrated inward cabin facing one, and captures the entire road ahead. It can provide irrefutable proof in the unfortunate event of an accident and can provide protection of your valuable property whilst parked and provide a record of scenic drives. For Fleet and Transport Managers it provides invaluable information such as driving behaviour analysis and active tracking information from one integrated software platform.
Fleet Management
Perfect for fleet managers looking to monitor driver behaviour, track vehicle location in real-time, and manage a fleet efficiently.
Commercial Vehicles
Ideal for delivery vans, service vehicles, and transportation businesses where real-time tracking, video surveillance, and driver monitoring are crucial for operational efficiency and safety.
Personal Vehicles
Great for personal vehicle owners seeking enhanced security and driver safety monitoring, providing peace of mind while driving.
Security & Surveillance Vehicles
Suitable for security vehicles, providing real-time video streaming and tracking for surveillance operations.
Accident Documentation
Helps capture video footage of any accidents or incidents, providing clear evidence that can be used in insurance claims or legal situations.
Full Specification
JC261P 2CH Cloud Connected Dash Cam with integrated Tracker for Cars, Vans and HGV’s including installation Main features
- Full HD 1080P forward-facing camera
- HD 720P inward cabin facing camera
- Integrated 4G, Wi Fi and GPS
- G-force sensor
- Auto-start with vehicle
- Providing both Live Tracking and Live Video information remotely
- Tamper proof Micro SD Card and SIM card protection
- Compatible with Micro SD memory cards up to 256GB
- 256GB Micro SD card included
- App for both iPhone and Android devices
SPECIFICATION
- Model name- JC261P-2CH
- Resolution/fps- Front 1920 x 1080@30fps ; Inward 1280 x 720
- Angle of view- Front -Diagonal 165°, Horizontal 85°, Vertical 80°; Inward – Horizontal 90°
- GPS- Built-in
- Wi-Fi- Built-in
- Buttons- Wi-Fi on/off, Voice on/off
- Storage- MicroSD™ card (32GB/64GB/128GB/256GB)
- Video Format- TS
- Microphone- Built-in
- Speaker- Built-in
- LED- Front -Recording status, GPS, Wi-Fi
- G-Sensor- Built-in
- Back-up Battery- Built-in Super Capacitor
- Record Mode- Normal Mode, Emergency Mode(G-Sensor), Parking Guard (G-Sensor)
- Input Voltage- DC 12V~24V
- Operation Temperature.- -20℃~65℃.
- Power Consumption- Average 3.6W
- Power Consumption- Standby Current in Parking Guard Mode 1mA
- Colour / Size / Weight- Front -Black L109mm x W69mm x D52mm/233g
- Certifications- FCC, CE, RoHS, WEEE
- PC Software- FleetDVS Viewer (Windows, Mac OS)
- Mobile Application- FleetDVS App (Android, and iOS)
Additional information
| Additional | Live Stream, Live Tracking |
|---|---|
| Mobile app included | Yes |
| Connectivity | 4G, GPS, WiFi |
| Resolution | 1080p, 720p |
| Use Case | Cars, HGV, Vans |
| Orientation | Front and Inside |
Nationwide Installation
With our professional installation team of expert fully qualified auto electricians, our engineers will make sure you and your vehicle receive the right care and attention to detail with no unsightly wires or holes in the interior, looking as good as new. To reiterate all cables are concealed. We will ensure that you are 100% happy with your camera system on completion. As soon as the installation has been ordered, we will arrange for the engineer to install at a location and time to suit you. We can install your system at any location convenient to you anywhere in the UK. The process is as follows:- Place your order.
- We will contact you to get more details such as car make, model and registration and confirm where you would like the installation to take place.
- We will ship the cameras directly to you.
- We will then contact you directly to arrange a convenient date and time to suit you.
- JC261P 2CH Fully Integrated Front Camera and Inward facing Camera with GPS, and Wi-Fi
- Quick release front windscreen mount
- 12/24v Cigarette Lighter Power Cable
- 256 GB Micro SD card
- Package Weight 0.3Kg
- Package Dimensions 24cm X 11cm X12 cm
